What this is — and is not

Once your products resolve through the resolver, every scan passes through a system you operate — and that vantage point can answer questions nothing else can: Is anyone scanning at all? Where? Which products? What are they looking for that we don't offer?

The same vantage point could obviously be abused, which is why Scan Analytics is built on a firm refusal: it derives statistics from the structure of scans — which identifier, which level, which link type, which country, which day — and never from the people scanning. No IP addresses are stored, no user identifiers, no fingerprints; small groups are suppressed so that no combination of filters can single out a person. And rather than asking you to take that on faith, the page carries a privacy report that proves it from the live configuration.

The page requires the realm admin role.

Choosing what to look at

The time-window picker covers 24 hours to 90 days plus a custom range, and auto-refresh keeps the page live — useful on a wall screen during a campaign. By default the statistics are tenant-wide; to zoom into one product, paste a Digital Link (URL or AI path, e.g. 01/09521000551015) into the inspector. A bare GTIN works too — the page interprets it and says so. Open in catalog jumps from a key to its record when a number needs a name.

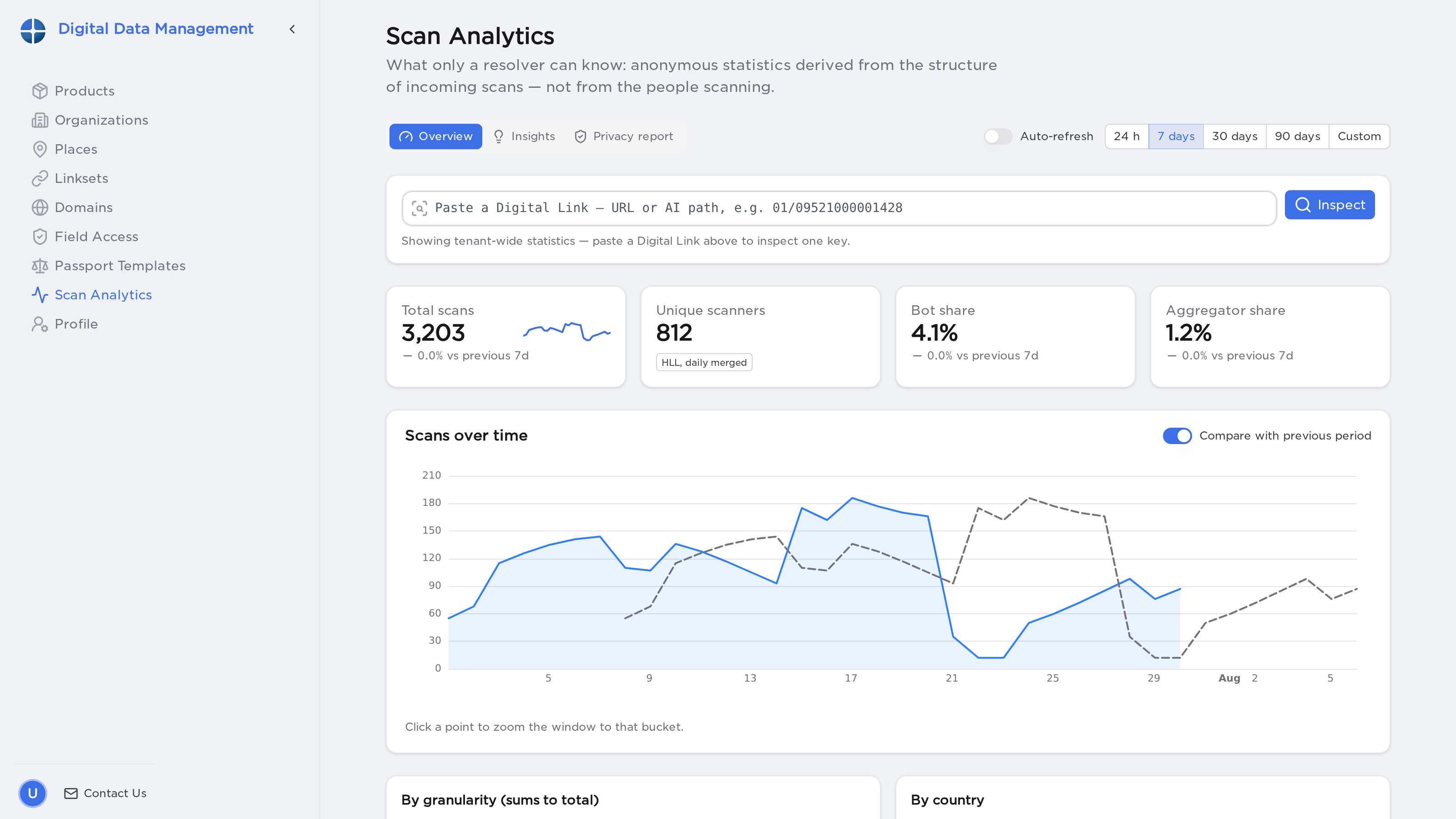

Overview

Four KPI tiles summarize the window: total scans, unique scanners, bot share and aggregator share — the latter two because raw scan counts flatter: crawlers and data aggregators scan too, and knowing their share keeps the human number honest. Each tile carries the change against the previous period.

The unique scanners figure deserves its footnote, which the page always displays: it is an estimate. Counting true uniques would require remembering who scanned — exactly what this system refuses to do. Instead it uses a probabilistic sketch (HyperLogLog) whose daily salt is thrown away, and labels the result with its method and error margin. An estimate honestly labelled beats a precise number obtained by surveillance.

Below, Scans over time draws the window's series with the previous period dashed behind it — a campaign bump or a weekend rhythm is visible at a glance, and clicking a point zooms the window to that bucket. Then the breakdowns:

By granularity splits scans into model, batch and item level — the difference between someone researching the product and someone holding one in their hand. By country and by device class locate the audience. By HTTP status is quiet quality control: a cluster of 404s means codes are in circulation that the resolver cannot answer. By linkType shows which destinations scanners actually request, and Top keys names the most-scanned products — resolved to their catalog names, so the list reads as products, not digits.

Where k-anonymity suppresses or truncates a breakdown, the page says so explicitly. A list that is quietly incomplete would be worse than no list.

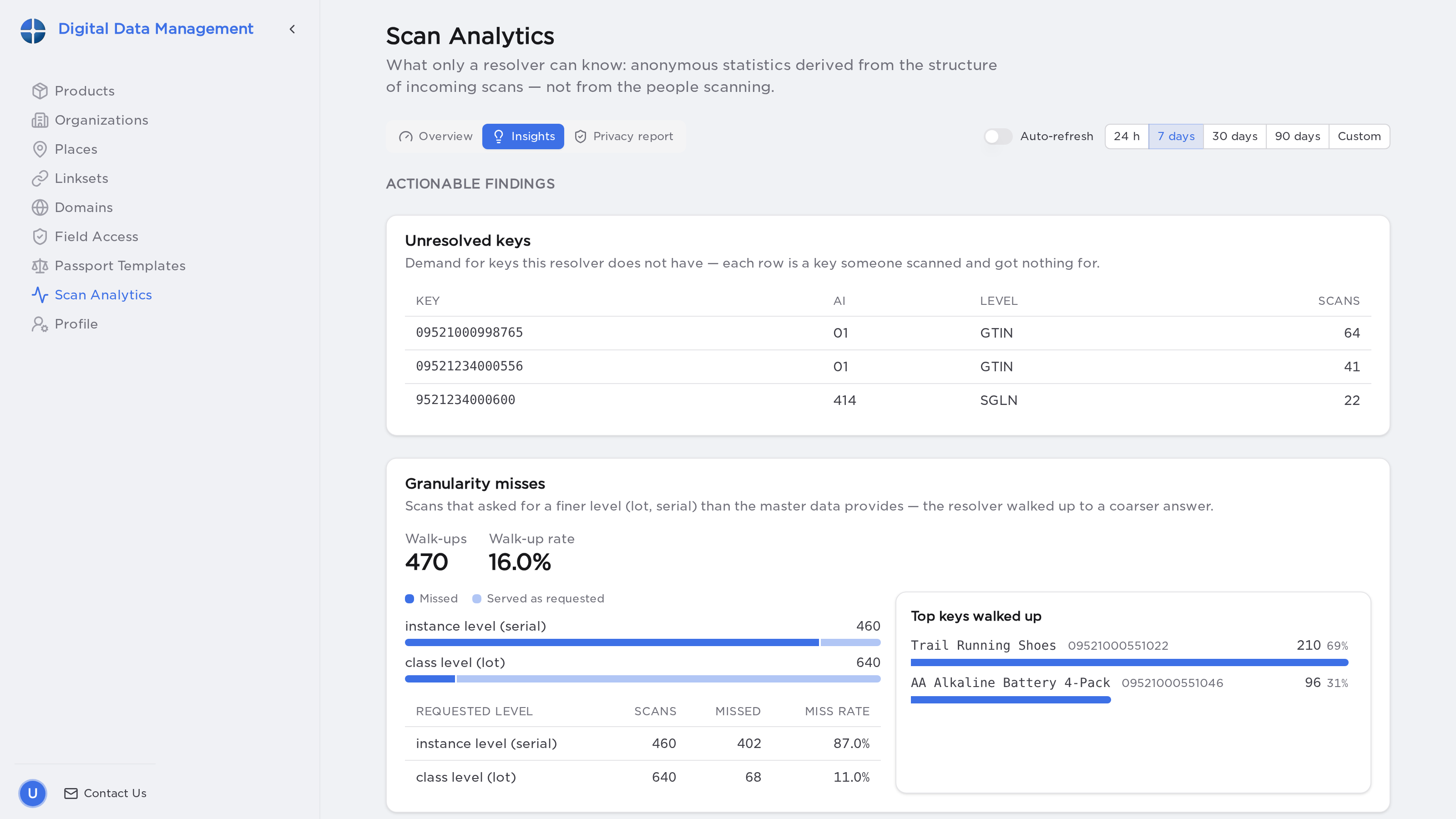

Insights

The Insights tab does the interpretation the overview leaves to you — each insight is a question turned into a list:

Which codes circulate that we never registered? — Unresolved keys. Are people scanning items where we only serve the model? — Granularity misses, a direct pointer to missing serialized content. What do scanners ask for that no link provides? — LinkType demand, essentially a feature-request channel wired into the resolver. Which languages do scanners speak that our content doesn't? — Language gaps. When does scanning happen? — the scan rhythm heatmap by weekday and hour. Is one serial number showing up in implausibly many places? — Clone suspects, a counterfeit signal with adjustable thresholds. And asset rotation reads repeat scans of returnable assets as cycle data.

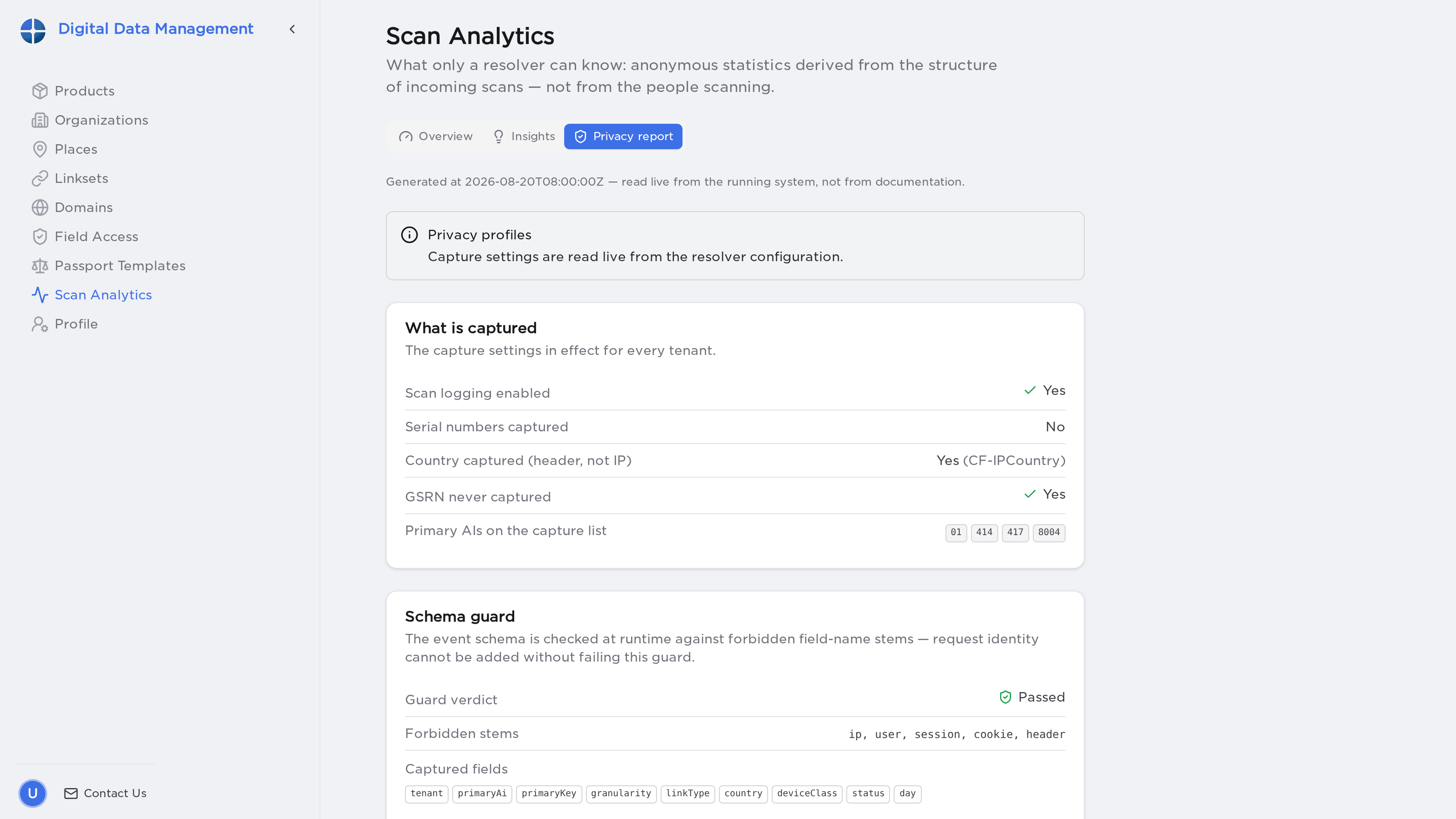

The privacy report

The third tab is addressed to your data-protection officer as much as to you. It documents, read live from the running configuration rather than from a policy document, what the analytics pipeline collects and what it refuses to collect:

It walks through the capture settings (which Application Identifiers are stored, whether serials and countries are among them, and that service-relation numbers — GSRN, which can identify individuals — are never captured); the schema guard, which checks every stored field name against forbidden stems like ip, user, session, cookie and shows its verdict; the k-anonymity threshold and which breakdowns it gates; the uniques machinery described above, including the memory-only, daily-rotated salt that makes yesterday's scanner and today's unjoinable; and finally retention policies, operational limits and whether the web server's access-log pattern contains client IPs.

The tab exists so that the answer to "what do you actually store?" is a screenshot of the running system, not a promise in a PDF.
